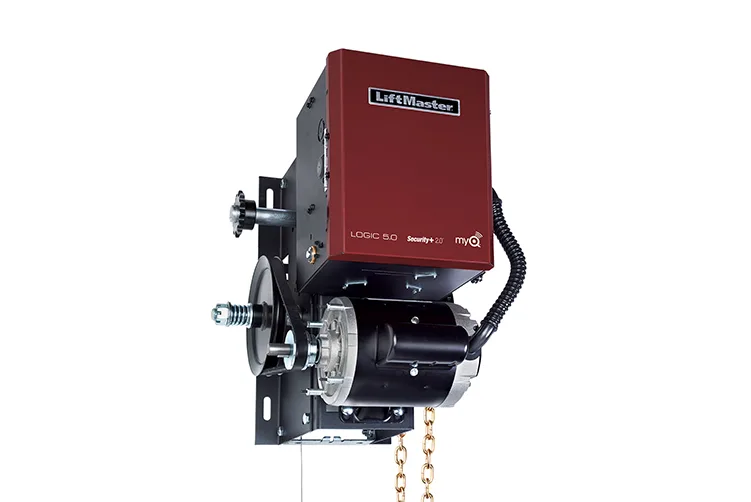

Engineered for rigorous industrial settings, the H Hoist Operator delivers dependable performance with effortless manual override. Featuring a floor-level chain hoist for emergency operation, intuitive programming via a control function selector dial, and MyQ® connectivity for secure remote monitoring, this operator ensures high-cycle reliability and simplified maintenance in demanding commercial applications.
Key Specifications
Voltage Options: single-phase 115V/230V; three-phase 208V, 230V, 460V; discrete 575V
Continuous-Duty High-Torque Motor: ⅓, ½, ¾, or 1 HP; removable without shifting limit settings
Control Function Selector Dial: programs seven wiring types including Timer-to-Close
Adjustable Friction Clutch & Mid-Stop: protects system and enables preset partial openings
Floor-Level Chain Hoist with Electrical Interlock: manual operation during power loss
MyQ® Technology: secure smartphone and tablet remote control and notifications
MyQ® Technology enables you to securely monitor and control your facility operator and lights with your smartphone, tablet or computer for greater peace of mind.
Alerts can be received as email or pop-up (push) notifications on a mobile device, ensuring the status of your commercial door.
MyQ Mobile App is a free download with no annual activation fee.
Requires 828LM MyQ Internet Gateway to connect to MyQ Smartphone App.
Dual Voltage Connections increase flexibility by enabling the installer to select the required voltage within phase, to meet job-site requirements.
Single-Phase: 115V and 230V, 3-Phase: 208V, 230V and 460V, 575V is a discrete model without field-selectable voltage.
Control Function Selector Dial enables easy selection and programming of (7) wiring types, from constant pressure to close, to specialized Timer-to-Close functionality to meet end-user needs.
Continuous-Duty High-Starting Torque Motor performs in demanding industrial overhead door applications.
Motor Removable without Affecting Limit Switch Settings saves time and money for maintenance.
Adjustable Friction Clutch helps to protect door and operator from damage should the door meet an obstruction.
Mid-Stop enables partial opening of door to a preprogrammed position for energy savings, time savings and convenience.
Maximum Run Timer reverses or stops door if closing time exceeds expected time-frame to limit damage to door and operator.
Delay-On-Reverse Circuit prevents abrupt reversal of door, reducing wear on the door and operator system.
3-Button Control Station with Maintenance Alert System (MAS) provides open/close/stop functions and notification when routine maintenance is required.
Continuous-duty high-starting torque motor with instant reverse and overload protection. Available in 1/3, 1/2, 3/4 and 1 HP; single- or three-phase. Capacitor start on single-phase. Removable without affecting limit switch settings.
Operators are factory preset to C2 wiring, providing momentary contact to open and stop, with constant contact to close.
UL 325 requires all commercial door operators to be either constant pressure to close or be equipped with a primary external monitored entrapment protection device.
Security+ 2.0™ safeguards your facility – with every click, a new code is sent to the commercial door operator so the door opens only for you.
Timer-To-Close conveniently and confidently closes the commercial door automatically after a predetermined amount of time has elapsed for added security and peace of mind.
Floor Level Chain Hoist with Electrical Interlock provides easy disconnect and manual operation in an emergency.
